Double acting plough overturning valve
../include/upload/uploadImages/images/20140617172259.jpg

 USE AND OPERATION:

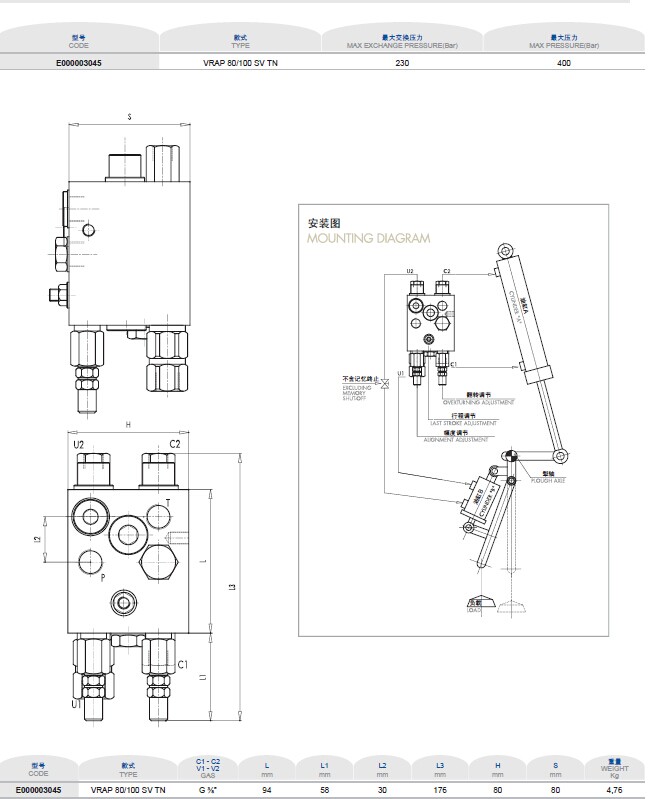

This valve has been realized for use on cylinders for reversible plough to obtain the automatic oil backflow and therefore the motion reversal of the hydraulic cylinder that makes the plough rotating. It has been studied to set in action 2 cylinders with advantageous rotation load( see scheme).
Operating instructions: sequence working: first cylinder B starts lining up the load; once it got the end stroke, cylinder A starts overturning. When this gets the dead point, A and B start working at the same time, B with a delayed speed in relation to A.
MATERIALS AND FEATURES:
Body: zinc-plated steel
Internal parts: hardened and ground steel
Seals: BUNA N standard
Poppet type: any leakage
These valves are supplied with exchange pressure at 140 Bar: according to your requirements, pressure setting can be modified by acting on the pressure regulator.
APPLICATIONS:
Connect C1 to the stem, C2 to the cylinder’s block A, U1 to the block and U2 to the stem of the lining up cylinder’s B; P and T to the machine inlet. Thanks to its shape, it can be in-line assembled on a hydraulic cylinder or directly fixed on the plough through the threaded hole made on the body.
