Instruments Steering column

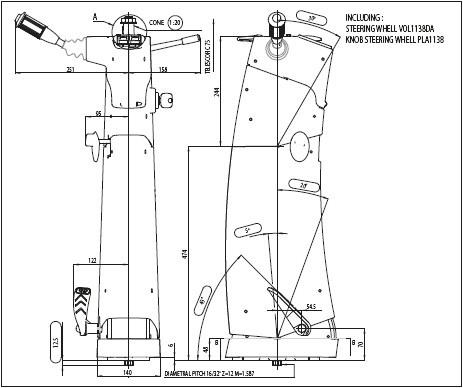

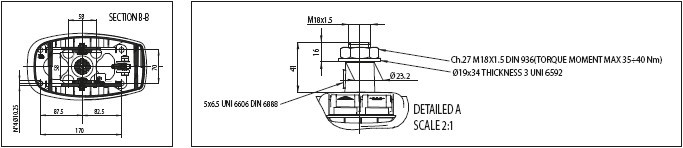

CL 2100 – Dual Tilt/Telescoping unit
../include/upload/uploadImages/images/20140611104734.png

 STANDARD FEATURES

Complete Steering Module including:

·         9 Plastic covers made via injection moulding (design and tools are property of ama spa).

·         Unit with 4 indicator lights.

·         Accommodation for ignition switch.

·         Accommodation for 2 of swf-valeo rocker switch units.

·         Accommodation for 1 of swf-valeo stalk switch (LH).

·         Option for wiring harness (standard or customized).

·         Option for steering wheel.

Dual Tilt adjustments:

·         Upper pivot located at mid column length, operated by a dedicated push lever.

·         Lower pivot located at the base of the column (5° toward wind-shield, 20° toward operator), operated by a dedicated foot pedal.

·         Both tilt adjustments are gas strut assisted.

Telescopic adjustment:

·         Located onto upper section

·         Travel: 75mm

·         Operated by a dedicated pull lever located underneath the steering wheel.

·         Special mechanism allowing relationship between steering wheel and column switch to remain unchanged.
